W5

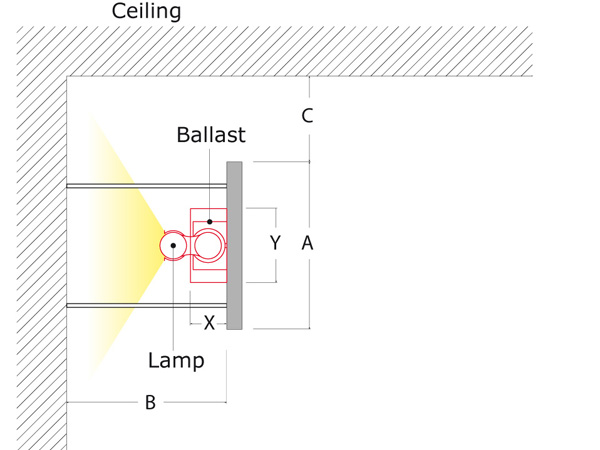

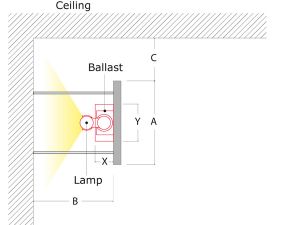

SET-UP WITH FALSE WALL OR PARTITION - UP AND DOWNLIGHTING, LAMP FITTED ON REFLECTOR PLATE - ELECTRODES, BALLAST AND CABLING CONCEALED BEHIND THE PLATE
1 row of lamps type LT8-B8 (or LT8-R8)
Using a LT8-B8 lamp produces better distribution of the light, both in uplight and downlight form. A soft
light streams out above and beneath, also lighting the ceiling indirectly.
| | Minimum | Optimal |
| A | 100 | 150 |
| B | 100 | 150 |
| C | 100 | 200 |
| X | 40 | 40 |
| Y | 50 | 60 |
