W2

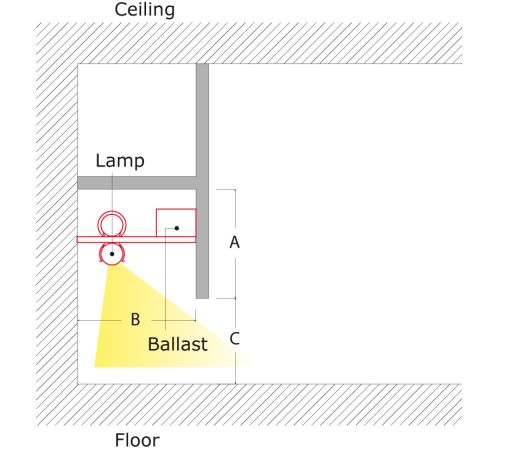

PLINTH LIGHTING, MOUNTED ON WHITE PLATE (LAMP BUILT UP, ELECTRODES, BALLAST AND CABLING CONCEALED ABOVE THE PLATE)
1 row of lamps type LT5-B5
Plinth lighting can be used on a wall, as well as underneath furniture. It gives a soft direct light to the base of the wall and the floor and also produces even lighting. Small 15mm x 20mm plates need to be attached to the wall and false wall to attach the reflector plate.
| | Minimum | Optimal |
| A | 50 | 70 |
| B | 70 | 100 |
| C | 15 | 20 |
