V8

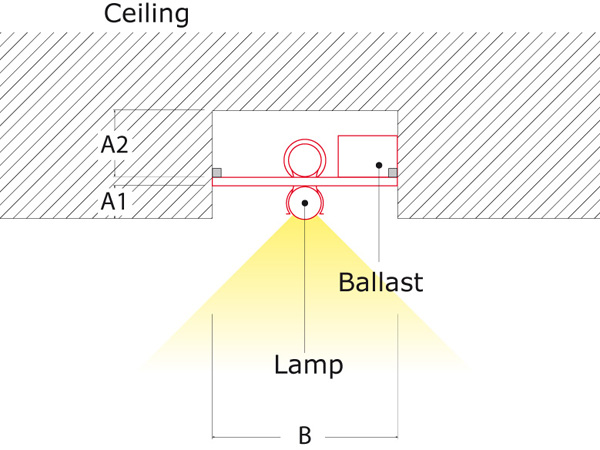

LAMP FULLY RECESSED INTO A FALSE CEILING: ASSEMBLY ON PLATE IN U-SHAPED RECESS
1 row of lamps type LT8-B8
The lamp is mounted on a white reflector fitted using 2 strips (20 x 25mm) attached to the ceiling.Ballasts, electrodes and cabling sit above the plate. This set-up is also possible for curved shapes and corner shapes, in which case the plate is laser-cut to the required shape.
View application
| | Minimum | Optimal |
| A1 | 30 | 40 |
| A2 | 35 | 50 |
| B | 60 | 130 |
