V7

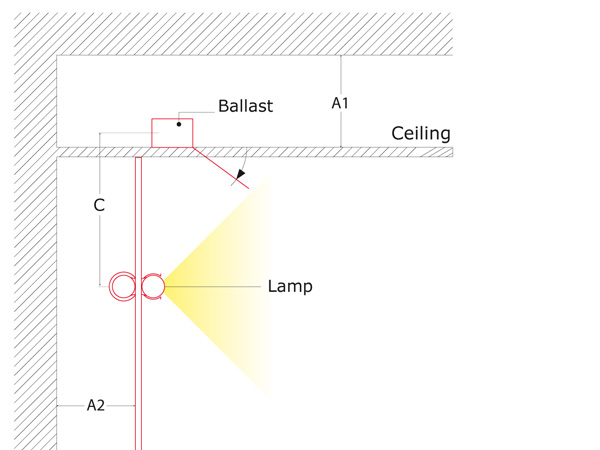

LAMP MOUNTED ON A FALSE WALL OR CEILING, ELECTRODE BUILT IN BEHIND THE FALSE WALL OR CEILING
1 row of lamps type LT8-B5 / LT8-R5
This set-up is ideal to emphasise the shape of a wall, particularly with curved walls. The ballast is mounted
above the false ceiling at a maximum distance of 50cm from the lamp (electrode).
| | Minimum | Optimal |
| A1 | 40 | 50 |
| A2 | 40 | 50 |
| C | 200 | 500 |
