I6

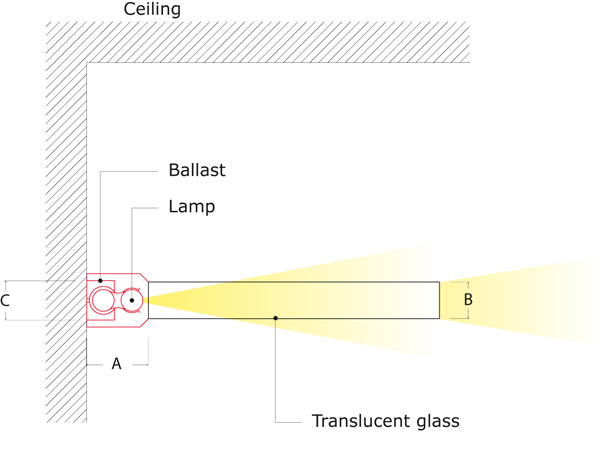

DIRECT SHELF LIGHTING: LAMP FITTED IN A U-SHAPED PROFILE BEHIND THE SHELVE
1 row of lamps type LT5-B5
The cross-section of the shelves is lit by lamps mounted behind the shelves. The lamps and ballasts are placed in a U-shaped reflector placed in such a way that no light is lost. The reflector can also be built into the wall. This shelf lighting provides a lovely light effect in areas where there is limited lighting (e.g. a bar).
| | Minimum | Optimal |
| A | 45 | 50 |
| B | 15 | 20 |
| C | 35 | 35 |
