Installation

I4

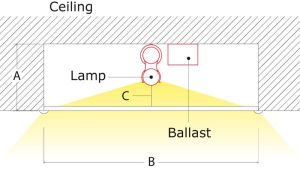

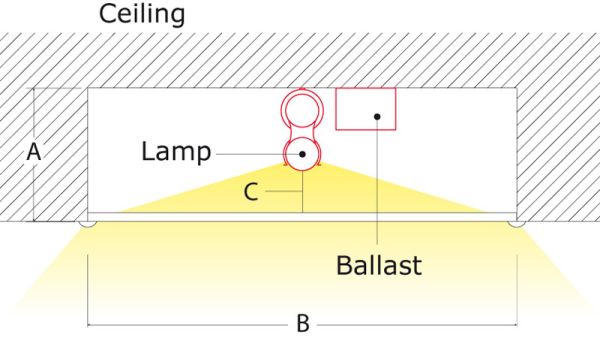

LIGHTING OF STAINED GLASS WINDOWS: LAMPS, BALLASTS AND CABLING FITTED TO THE CEILING BEHIND DIFFUSER

1 row of lamps type LT8-B8

Depending on the type of glass and the size of the structure, the number of rows of lamps is adjusted to achieve an even light. The distance between the lamp and the glass needs to be big enough to achieve a wide emission of light. This is also why we recommend LT8-B8 lamps. With small stained windows lighting the contour is sufficient. The alcove above the window needs to be painted totally in white.



 Minimal
A300
B450
C200
