C5

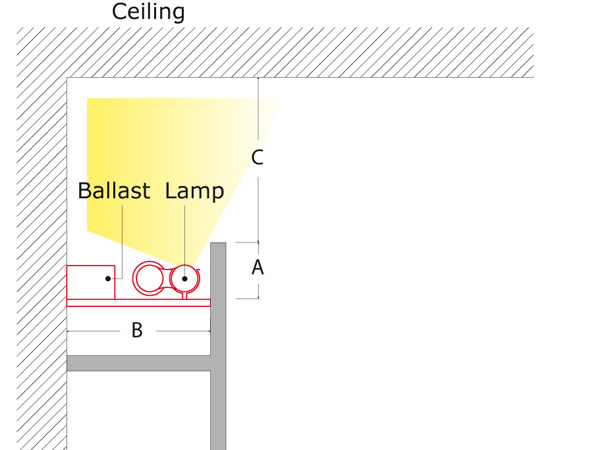

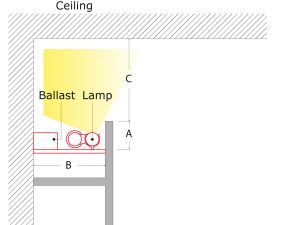

SET-UP WITH FALSE WALL WITHOUT REFLECTIVE SURFACE
1 row of lamps type LT5-B5
Set-up C5 also creates even lighting on walls and ceiling. However, in this case, the lamps are mounted on a reflector, because there is no reflective surface or because the reflective surface is too deep. This way, it is certain no light will be lost.
View application
| Minimum | Optimal |
A | 35 | 50 |
B | 70 | 150 |
C | 100 | 300 |
R* | | 300 |
* radius curved ceiling |
