C1.3

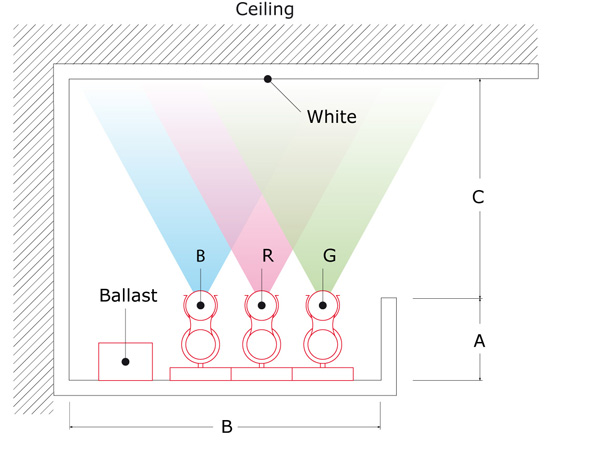

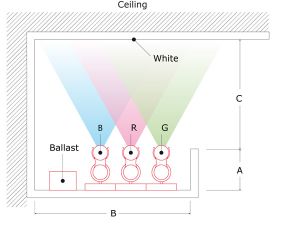

RECESSED COFFER, LIGHTING DIRECTED CENTRALLY TOWARDS THE CEILING
3 rows of lamps type LT5-B5
3 rows of lamps in the 3 primary colours (red, green and blue) can be directed through an RGB unit that mixes the colours to create a full palette of colours. 3 shades of white with an external unit can also be mixed depending on the colour temperature of the daylight. (827-2700K, 830-3000K, 840-4000K)
View application
| | Minimum | Optimal |
| A | 50 | 65 |
| B | 200 | 250 |
| C | 200 | 250 |
| R* | | 250 |
| * radius curved ceiling |
