C1.1

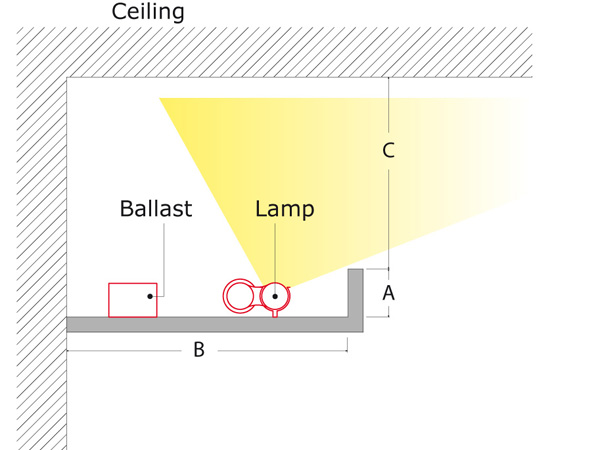

RECESSED COFFER, LIGHTING DIRECTED CENTRALLY TOWARDS THE CEILING
1 row of lamps type LT5-B5
Set-up C1 delivers optimum average light levels throughout the area. For very large areas, we recommend a combination with direct lighting in the form of spots or downlights so that the area can be lit evenly.
View application
| | Minimum | Optimal |
| A | 35 | 50 |
| B | 70 | 150 |
| C | 100 | 200 |
| R* | | 150 |
| * radius curved ceiling |
